Product Description:
I. Core Functions and Roles
Sealing and Opening
The diaphragm realizes the rapid closing (sealing) and opening (releasing compressed air) of the valve port through elastic deformation:
- Closed state: It tightly adheres to the valve seat relying on its own elasticity and air pressure difference to ensure no air leakage and maintain system pressure.
- Open state: It deforms instantly after receiving a control signal, opens the valve port, and allows compressed air to form a pulse jet.
Energy Transfer
The instant action of the diaphragm directly determines the intensity and speed of the blowing airflow, and its response speed (millisecond level) affects the ash cleaning effect and compressed air utilization rate.
II. Key Technical Parameters
Thickness and Size
The thickness is usually 1-3mm (adjusted according to the pressure level), and the size must accurately match the pulse valve body (such as diameters of 50mm, 65mm, etc.). Excessive deviation will lead to sealing failure or movement jamming.
Temperature Resistance Range
- Conventional nitrile rubber (NBR): -20℃~80℃, suitable for normal temperature and dry working conditions.
- Fluororubber (FKM): -20℃~200℃ (some models can reach 260℃), suitable for high-temperature and corrosive environments (such as chemical industry, waste incineration).
- Silicone rubber (VMQ): -60℃~200℃, with excellent low-temperature resistance, suitable for cold regions.
Pressure Resistance Performance
It needs to withstand a working pressure of 0.4-0.7MPa (special models are adapted to higher pressures). There should be no permanent deformation under long-term pressure to ensure sealing reliability.
Service Life
Under normal working conditions, high-quality diaphragms have a fatigue life of more than 1 million times (number of blows). Frequent movement or harsh environments (such as dust wear, chemical corrosion) will shorten their service life.

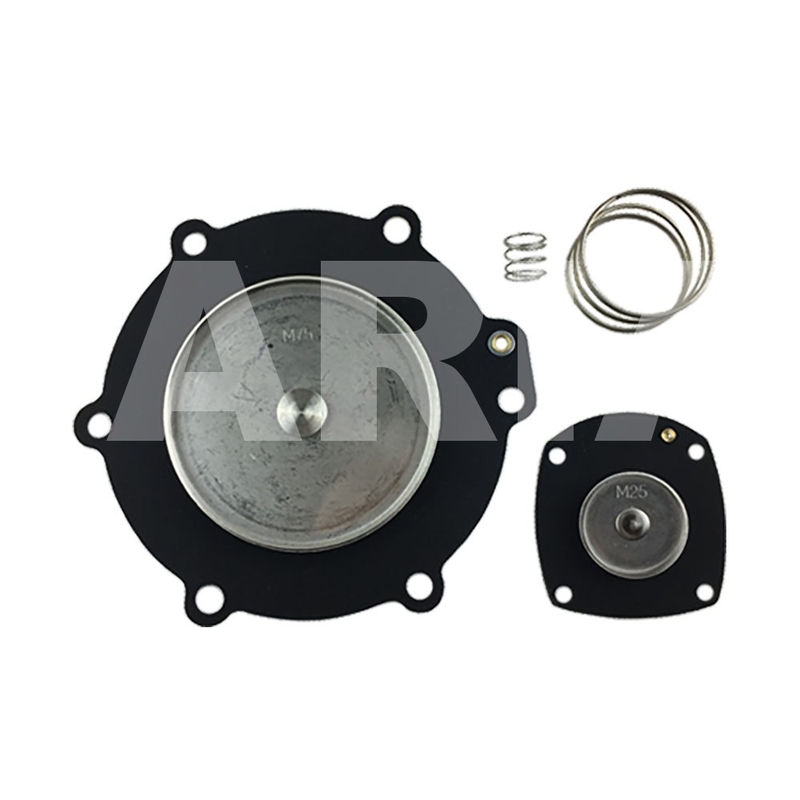

M75 Diaphragm Repair Kit For Turbo SQP75-IN SQM75-IN
This is M75 + M25 diaphragm repair kit for Turbo 3'' FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN pulse valves. Diaphragm (Rubber or Fabric Reinforcement in Rubber Diaphragms) is a precision functional part used check pressure or change fluid pressure into drive power. Fabric-reinforced in rubber diaphragms utilize a layer of an engineered fabric material as part of the diaphragm comstruction. This layer of fabric give tremendous design flexibity. The wholse series diaphragms includes M25, M40, M50, M75. If you have interests in other diaphragm repair kits, pls feel free to contact me, thanks.
Overall Dimension of M75+M25 Diaphragm Repair Kit For 3'' Turbo Pulse Valve:
Product Details of M75 Diaphragm Repair Kit For Turbo FP65 FM65 Pulse Jet Valve:
Available Models of Diaphragm Repair Kit For Turbo Pulse Valves:
|
|
|
|
|
|
|
FP20, FM20, FP25, FM25, DP20, DM20, DP25, DM25, EP25, EM25,
SQP20, SQM20, SQP25, SQM25, FDP20, FDM20, FDP25, FDM25
|
|
|
|
|
FP40, FM40, DP40, DM40, EP40, EM40
|
|
|
|
|
FP50, FM50, SQP50, SQM50, SQP55, SQM55, SQP60, SQM60, SQP65, SQM65
|
|
|
|
|
FP65, FM65, SQP75-IN, SQM75-IN, SQP100-IN, SQM100-IN
|
|
|
|
Tips: EPDM, Viton all available.
|
Applications:
TURBO Pulse Valve Diaphragm is a high-quality product designed for specific application occasions and scenarios. The product is CE certified, ensuring its compliance with safety and quality standards.
With a minimum order quantity of 1, customers have the flexibility to purchase according to their needs. The price of the diaphragm is open to negotiation, offering a competitive pricing advantage.
Packaged in cartons, the Pulse Valve Diaphragm is secure and protected during transportation. Customers can expect a quick delivery time of 1-7 working days after payment, ensuring prompt fulfillment of orders.
Multiple payment options are available including T/T, Western Union, and Paypal, providing convenience and flexibility to customers worldwide.
The TURBO Pulse Valve Diaphragm is built to withstand high temperatures and corrosive environments, thanks to its Fluororubber (FKM) material. With a temperature range of -20 ℃ to 200 ℃ (some models reaching 260 ℃), it is ideal for applications in chemical and waste incineration industries.
Operating within a working pressure range of 0.4-0.7MPa, this diaphragm ensures reliable performance in various industrial settings.
The diaphragm material, NBR, offers durability and resilience within a temperature range of -20 ℃ to 80 ℃, making it suitable for room temperature drying conditions.
With a supply ability of 5000 pieces per month, customers can rely on the availability of the Pulse Valve Diaphragm to meet their requirements consistently.
For optimal performance and longevity of the Pulse Valve Diaphragm, it is recommended to use a Maintenance Kit regularly. The Maintenance Kit includes essential components to ensure the diaphragm functions efficiently over time.
Choose TURBO for quality, reliability, and innovation in pulse valve technology. Enhance your industrial operations with the superior performance of TURBO Pulse Valve Diaphragm.
Packing and Shipping:
Product Name: Pulse Valve Diaphragm
Product Description: High-quality diaphragm designed for pulse valves.
Material: Durable rubber
Package Includes: 1 Pulse Valve Diaphragm
Shipping Method: Standard Shipping
Shipping Time: 3-5 business days
