Product Description:
Pulse Jet Valve Overview
Pulse Jet Valve is a type of valve that converts a continuous input signal into a pulsed signal through the delay of gas flow, gas resistance, and gas capacitance.
Inner Structure of the Valve
The air inlet of the right-angle Pulse Jet Valve features an inner structure that includes the installation and utilization of a positioning steel ring. This design serves to prevent loosening caused by inertial impact and guarantees precise installation positioning over time.
Long-lasting Design
Even after prolonged usage, the stainless steel nut incorporated in the valve can still ensure convenient disassembly and reassembly, providing ease of maintenance.
Applications:
Bag filter pulse cleaning system
Function: Control the instantaneous injection of compressed air into the filter bag to remove surface dust.
Applicable equipment:
- Cement plant rotary kiln dust collector
- Steel plant blast furnace gas purification system
- Bag dust removal device for coal-fired power plants
- Dust collection system for chemical/pharmaceutical industry
- Material conveying and pneumatic conveying system
- Used for pulse airflow dredging when pipelines are blocked (such as grain and fly ash conveying pipelines).

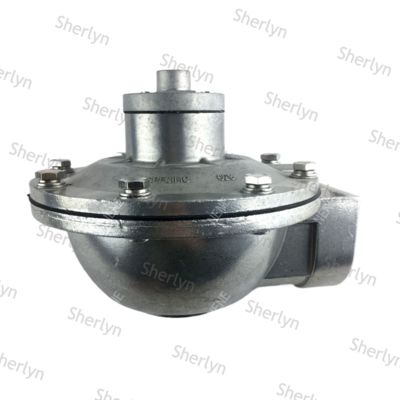

2'' RCA50T Goyen Type Remote Pulse Jet Diaphragm Valve For Baghouse
Diaphragm pulse valves are the most important components of a baghouse pulse jet cleaning system. On a pulse jet baghouse pulse valves (also called diaphragm valves) control the release of air pulses during the cleaning cycle. When the baghouse control board or timer board initiates a cleaning cycle it sends an electrical signal to the solenoids, when then activate the pulse valve. Inside the pulse valve, a rubber diaphragm opens and closes to release the compressed air stored in the air header tank. The air then passes through the valve into the blow pipes above the filters and then is directed down into the filters to clean them.
Technical Data of T Series Pulse Jet Valves:
| Model Number |
RCA15T |
RCA20T |
RCA25T |
RCA35T |
RC45T |
RCA50T |
RCA62T |
RCA76T |
| Office Size |
15 |
20 |
25 |
35 |
45 |
50 |
62 |
76 |
| (mm) |
| Port Size |
1/2'' |
3/4'' |
1'' |
1 1/2'' |
1 1/2'' |
2'' |
2 1/2'' |
3'' |
| (Inch) |
| Diaphragm Number |
1 |
2 |
| Pilot Size |
1/8'', 1/4'' |
| Working pressure |
0.35 to 0.85 MPa |
| Diaphragm Material |
NBR, FKM, EPDM |
| Body Material |
Aluminum Alloy |
| Valve Structure |
Right Angle (Outlet is at 90° to Inlet), Threaded Port |
Support and Services:
The Product Technical Support and Services for Pulse Jet Valves include troubleshooting assistance, installation guidance, maintenance recommendations, and repair services. Our team of experts is available to provide product-specific information, address any operational issues, and offer solutions to enhance the performance of your pulse jet valves.
Packing and Shipping:
Product Packaging:
The Pulse Jet Valves are carefully packaged in sturdy cardboard boxes to ensure safe transportation. Each valve is wrapped in protective material to prevent any damage during shipping.
Shipping:
We offer fast and reliable shipping options for the Pulse Jet Valves. Orders are processed promptly and shipped out with a reputable courier service to deliver your product in a timely manner. Tracking information will be provided so you can monitor the status of your shipment.
