Product Description:
Ultra Slim Design
The product features an ultra slim design, making it ideal for fixtures and automation equipment with limited space. The overall length has been significantly shortened, with a minimum width ranging from 7.5mm to 10mm depending on the valve model.
Space Saving Structure
The valve is 5% to 13% lighter than the previous model, reducing equipment load. Its lightweight design is suitable for various applications, providing ease of handling and installation.
Flexible Installation and Testing
The four-sided magnetic switch slot allows for four-way installation of magnetic switches, enhancing layout flexibility. This feature is especially useful for models with a cylinder diameter of 32mm or larger. Additionally, the modular accessories offer standard installation bolts and pole end connectors, with optional mount components available for further customization.
High Compatibility and Durability
The product is designed for high compatibility and durability. It features sealing and buffering with Nitrile rubber (NBR) seals suitable for a wide range of temperatures. The protection level is rated at IP65, making it resistant to dust and humid environments.
Applications:
Industrial Automation
Positioning and handling: CQ2-Z standard type (cylinder diameter 20-50mm) is used for robotic arm gripper and conveyor belt sorting.
Precision assembly: The rod does not retract ( CQ2K ) ensures that the components have no rotational errors and is suitable for electronic production lines.
Environmental protection and energy equipment
Dust removal system: Large cylinder diameter CQ2B160 (cylinder diameter 160mm) drives the lifting valve, combined with pulse valve for dust cleaning.
Storage bin control: resistant to lateral load ( CQ2 □ S ) arch breaking, resistant to lateral pressure of powder materials.
special environment
Food machinery: Water resistant ( CQ2-R/V ) and washable, with EPDM seals compatible with sterile environments.
High temperature scenario: Stainless steel valve body+FKM seal (customized) resistant to 120 ℃ instantaneous high temperature.
| Brand: |
SMC® |
| Cylinder Action: |
Double Acting |
| Cylinder Bore Size: |
12 mm |
| Manufacturer: |
SMC Corporation of America |
| Mounting Type: |
Tapped Both Ends |
| Name: |

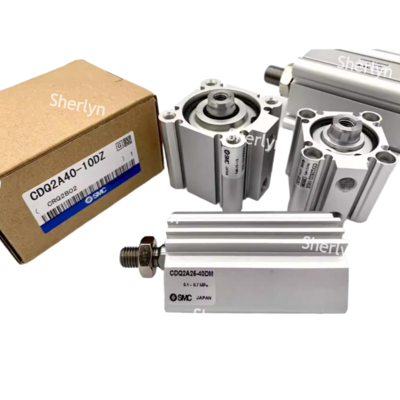

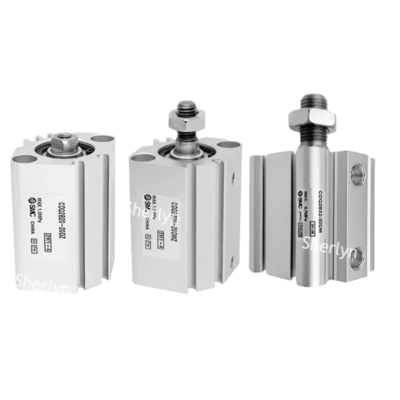

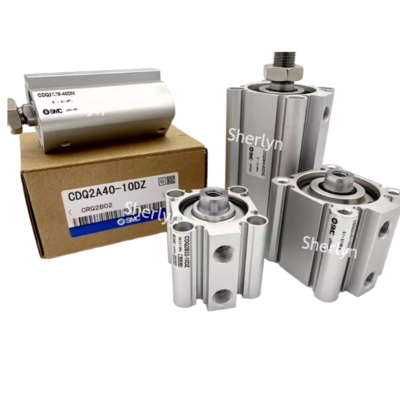

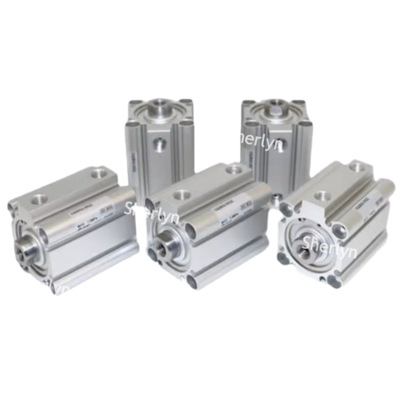

SMC® CQ2A12-5D CQ2 Standard Cylinder, 12 mm Cylinder Bore, 5 mm L Stroke, Double Acting Cylinder Action, Tapped Both Ends Mounting |
| Pressure Rating: |
1 mpa |
| Product Type: |
Simple |
| Series: |
CQ2 |
| Stroke Length: |
5 mm |
| Temperature Rating: |
-10 to 70 deg C |
| Type: |
Standard |
| Unit Of Measure: |
EA |
| Weight: |
1 |
Support and Services:
Our Product Technical Support and Services for the Piston Pneumatic Cylinder include:
- Expert troubleshooting assistance for any issues related to the product
- Guidance on proper installation and maintenance to ensure optimal performance
- Product training and education to enhance user proficiency
- Warranty support and assistance with claims
- Access to technical documentation and resources for further information
Packing and Shipping:
Product Name: Piston Pneumatic Cylinder
Description: High-quality pneumatic cylinder with a durable piston design.
Package Contents: - 1 x Piston Pneumatic Cylinder - Instruction Manual
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days - Shipping Cost: $10
